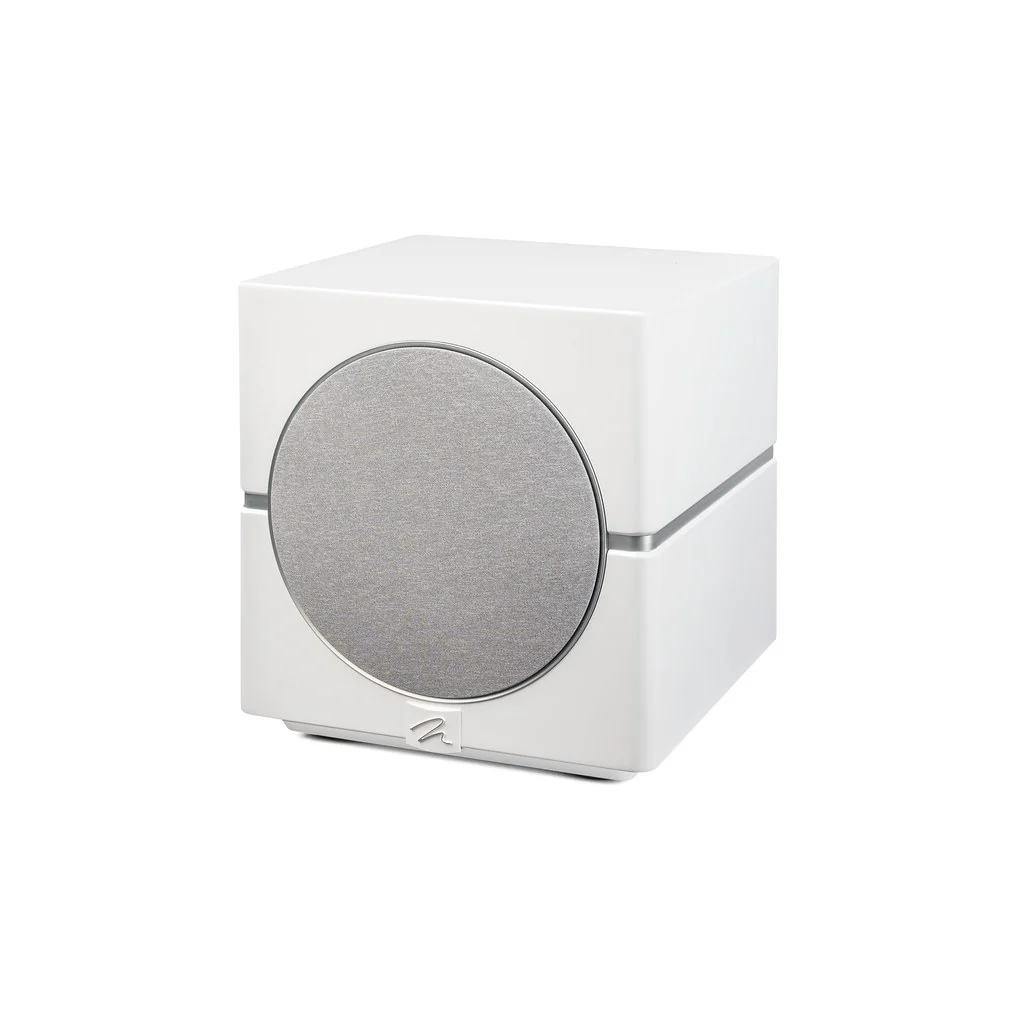

MartinLogan Dynamo 10 Subwoofer

With premium looks and the high performance to back it up, Dynamo™ 10 is a compact, powerful and musical subwoofer ideal for any system but engineered to compliment the speed and detail of MartinLogan loudspeakers. Dynamo 10 packs an extensive feature list including a custom 10” aluminum woofer, a 1000W peak power amplifier, and a best-in-class 500MHz DSP Engine with 64-bit processing all encased in a beautifully finished 1” thick cabinet. With plenty of power and precision on tap, Dynamo 10 also features an array of connectivity options ranging from XLR to the built-in wireless option. If that weren’t enough, Dynamo 10 also features MartinLogan’s powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

Digital Signal Processor	Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response	23–120 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer	10” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket
Cabinet	Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
Amplifier	Magnitude® MT-1kW Amplifier with 1,000W peak (500W continuous)
Controls (Backplate)	Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Inputs	Line Level: Left, Right/LFE, XLR LFE Speaker Level: Left and Right (Requires Banana Plugs)
Weight	42.8lbs (19.4kg)
Dimensions (HxWxD)	14 3/4" (37.3cm) x 13 3/4" (34.8cm) x 13 3/4" (34.8cm)
